3-Flute, Coolant-Through, Variable Index, Universal X‑Coated

3CVX

High‑Performance, Coolant‑Through Design for Slotting & Dynamic Milling Steel, Stainless & High‑Temp Alloys

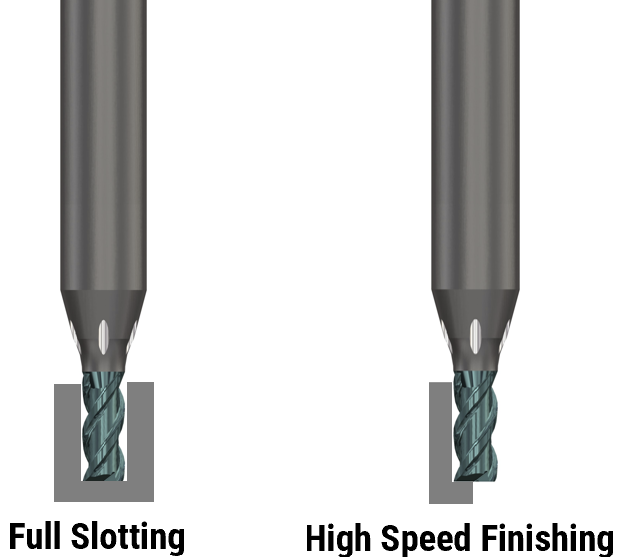

Full slotting and high speed finishing with the X-coated 3CVX

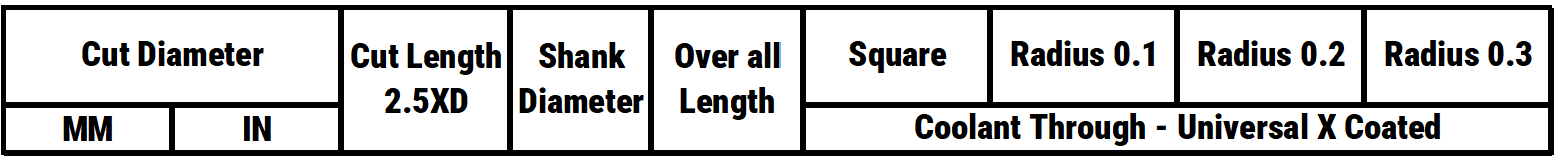

Cut Diameter		Cut Length 2.5×D	Shank Diameter	Overall Length	Square	Radius 0.1 / .005"	Radius 0.2 / .010"	Radius 0.3 / .015"
mm	in	Cut Length 2.5×D	Shank Diameter	Overall Length	Coolant Through – Universal X Coated

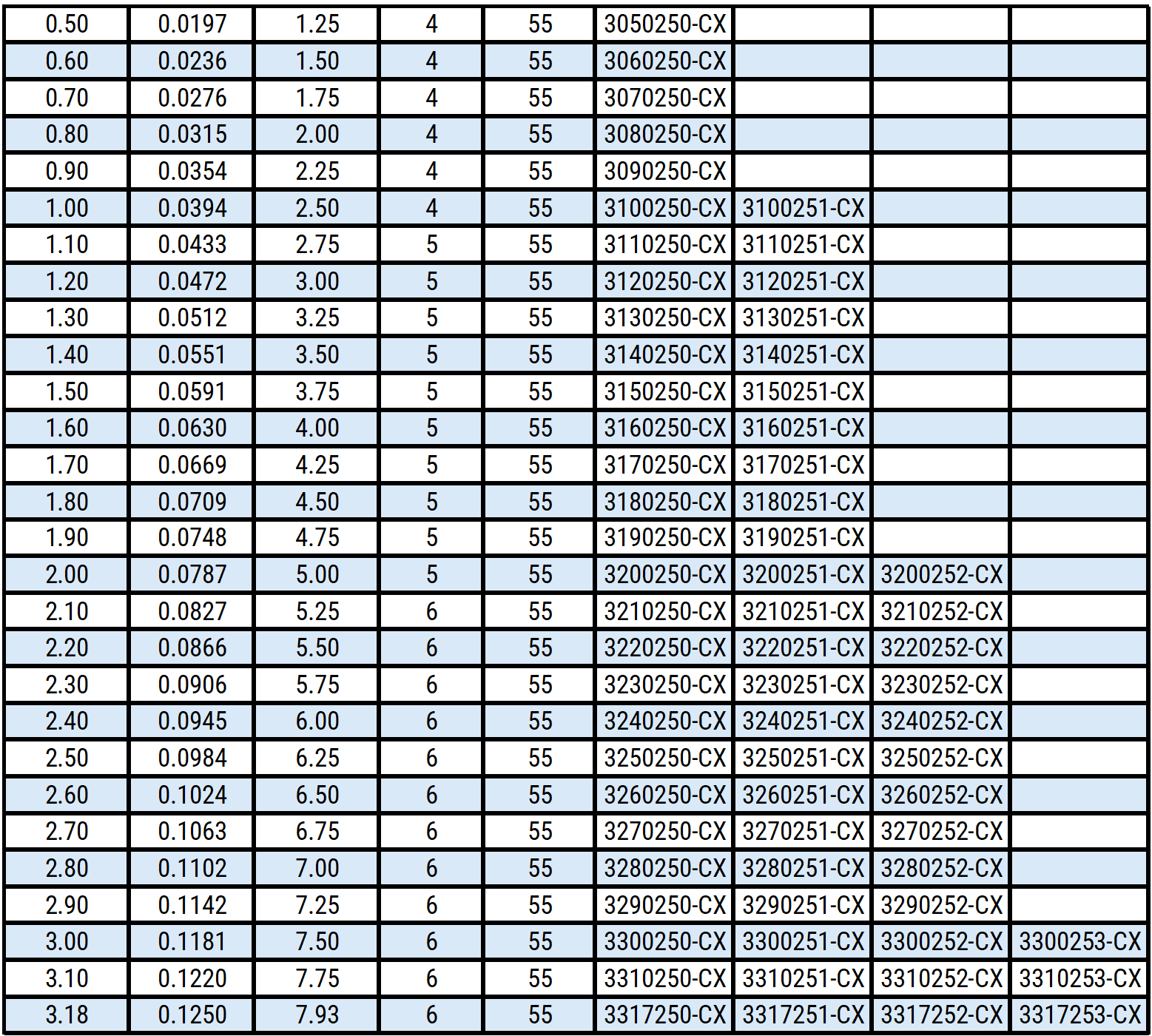

0.50	0.0197	1.25	4	55	3050250-CX	–	–	–
0.60	0.0236	1.50	4	55	3060250-CX	–	–	–
0.70	0.0276	1.75	4	55	3070250-CX	–	–	–
0.79*	0.0313	1.98	4	55	3079250-CX	–	–	–
0.80	0.0315	2.00	4	55	3080250-CX	–	–	–
0.90	0.0354	2.25	4	55	3090250-CX	–	–	–
1.00	0.0394	2.50	4	55	3100250-CX	3100251-CX	–	–
1.10	0.0433	2.75	5	55	3110250-CX	3110251-CX	–	–
1.19*	0.0469	2.98	5	55	3119250-CX	31192513-CX†	–	–
1.20	0.0472	3.00	5	55	3120250-CX	3120251-CX	–	–
1.30	0.0512	3.25	5	55	3130250-CX	3130251-CX	–	–
1.40	0.0551	3.50	5	55	3140250-CX	3140251-CX	–	–
1.50	0.0591	3.75	5	55	3150250-CX	3150251-CX	–	–
1.59*	0.0625	4.00	5	55	3159250-CX	31592513-CX	–	–
1.70	0.0669	4.25	5	55	3170250-CX	3170251-CX	–	–
1.80	0.0709	4.50	5	55	3180250-CX	3180251-CX	–	–
1.90	0.0748	4.75	5	55	3190250-CX	3190251-CX	–	–
1.98*	0.0781	4.95	5	55	3198250-CX	31982513-CX†	–	–
2.00	0.0787	5.00	5	55	3200250-CX	3200251-CX	3200252-CX	–
2.10	0.0827	5.25	6	55	3210250-CX	3210251-CX	3210252-CX	–
2.20	0.0866	5.50	6	55	3220250-CX	3220251-CX	3220252-CX	–
2.30	0.0906	5.75	6	55	3230250-CX	3230251-CX	3230252-CX	–
2.38*	0.0938	5.95	6	55	3238250-CX	32382513-CX†	32382525-CX†	–
2.40	0.0945	6.00	6	55	3240250-CX	3240251-CX	3240252-CX	–
2.50	0.0984	6.25	6	55	3250250-CX	3250251-CX	3250252-CX	–
2.60	0.1024	6.50	6	55	3260250-CX	3260251-CX	3260252-CX	–
2.70	0.1063	6.75	6	55	3270250-CX	3270251-CX	3270252-CX	–
2.78*	0.1094	6.95	6	55	3278250-CX	32782513-CX†	32782525-CX†	–
2.80	0.1102	7.00	6	55	3280250-CX	3280251-CX	3280252-CX	–
2.90	0.1142	7.25	6	55	3290250-CX	3290251-CX	3290252-CX	–
3.00	0.1181	7.50	6	55	3300250-CX	3300251-CX	3300252-CX	3300253-CX
3.10	0.1220	7.75	6	55	3310250-CX	3310251-CX	3310252-CX	3310253-CX
3.17*	0.1250	7.93	6	55	3317250-CX	33172513-CX	33172525-CX	33172538-CX

P	●
M	●
K	●
N	○
S	●
H	●

* Inch sizes (1/32, 3/64, 1/16, 5/64, 3/32, 7/64 and 1/8 in) use inch corner radii: .005" (0.13 mm), .010" (0.25 mm) and .015" (0.38 mm).

† Made to order, not stocked. Allow 14–20 business days.

Key Features

Coolant-through shank: delivers coolant to the cutting edge, reducing heat, extending tool life and improving chip evacuation.
Universal Extreme Coating: minimizes built-up edge, providing exceptional tool life and wear resistance in stainless steel and high-temp alloys.
New flute geometry: allows increased feed rates and reduced cycle times.
3-flute design: optimized for superior chip evacuation in difficult materials.
Premium carbide: for rigidity and long tool life.

Applications & Benefits

Applications

Full slotting, dynamic milling, large step-over milling and high-speed finishing.

Ideal Materials

Carbon, alloy and hardened steels (up to 56 HRC), stainless steels, cast iron, titanium, and nickel and cobalt alloys such as Inconel.

Performance Benefits

Long tool life and wear resistance in difficult materials
Reduced built-up edge
Higher feed rates and shorter cycle times

Speeds & Feeds

Recommended starting parameters. Feed per tooth is shown in mm, with inches in parentheses.

For other diameters: Feed / Tooth (mm) = Cut Diameter (mm) × Multiplication Factor

3CVX // OPEN SLOTS

Material Guide			Hardness	WOC	M/Min	SFM	DOC 2.5xD LOC	DOC 5.0xD LOC	Feed / Tooth mm (in) by cut diameter						Multiplication Factor
Material Guide			Hardness	WOC	M/Min	SFM	DOC 2.5xD LOC	DOC 5.0xD LOC	0.5(0.0197)	1.0(0.0394)	1.5(0.0591)	2.0(0.0787)	2.5(0.0984)	3.0(0.1181)	Multiplication Factor
P	CARBON STEEL	10XX, 11XX, 12XX, 12LXX, A27, A36	< 38 HRC	1xD	152	500	1.00xD	.50xD	0.0043(0.00017)	0.0086(0.00034)	0.0130(0.00051)	0.0173(0.00068)	0.0216(0.00085)	0.0259(0.00102)	0.008636
	LOW ALLOY STEEL	13XX, 41XX, 43XX, 51XX, 86XX, 93XX	< 38 HRC	1xD	152	500	1.00xD	.50xD	0.0043(0.00017)	0.0086(0.00034)	0.0130(0.00051)	0.0173(0.00068)	0.0216(0.00085)	0.0259(0.00102)	0.008636
	HIGH ALLOY STEEL	300M, Invar 36, Kovar, Maraging	< 48 HRC	1xD	122	400	.75xD	.38xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
M	AUSTENITIC STAINLESS STEEL	301, 303, 304, 304L, 316, 316L, 321, 347	< 38 HRC	1xD	122	400	1.00xD	.50xD	0.0038(0.00015)	0.0076(0.00030)	0.0114(0.00045)	0.0152(0.00060)	0.0191(0.00075)	0.0229(0.00090)	0.007620
	MARTENSITIC & FERRITIC STAINLESS	403, 410, 416, 420, 440, 430, 446	< 38 HRC	1xD	122	400	1.00xD	.50xD	0.0038(0.00015)	0.0076(0.00030)	0.0114(0.00045)	0.0152(0.00060)	0.0191(0.00075)	0.0229(0.00090)	0.007620
	PH STAINLESS	13-8, 15-5, 17-4, Carpenter 450	< 48 HRC	1xD	91	300	.75xD	.38xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
K	GRAY CAST IRON	SAE J431, ASTM A48	< 36 HRC	1xD	122	400	1.00xD	.50xD	0.0033(0.00013)	0.0066(0.00026)	0.0099(0.00039)	0.0132(0.00052)	0.0165(0.00065)	0.0198(0.00078)	0.006604
	MALLEABLE CAST IRON	ASTM A47, ASTM A220, ASTM A602
	NODULAR / DUCTILE	ASTM A536, ASTM 897
S	PURE NICKEL	Nickel 200, Nickel 201	< 98 HRB	1xD	44	145	.50xD	.25xD	0.00330(0.00013)	0.00660(0.00026)	0.00991(0.00039)	0.01321(0.00052)	0.01651(0.00065)	0.01981(0.00078)	0.006604
	NICKEL ALLOY	Hastelloy C-22, Inconel, Waspaloy, René, Incoloy 20	< 48 HRC	1xD	32	105	.50xD	.25xD	0.0018(0.00007)	0.0036(0.00014)	0.0053(0.00021)	0.0071(0.00028)	0.0089(0.00035)	0.0107(0.00042)	0.003556
	TITANIUM ALLOY	6AL-4V, ASTM 1, 2, 3, 4, 7, 12, 36AL-2S	< 36 HRC	1xD	58	190	.75xD	.38xD	0.0038(0.00015)	0.0076(0.00030)	0.0114(0.00045)	0.0152(0.00060)	0.0191(0.00075)	0.0229(0.00090)	0.007620
	COBALT ALLOY	Stellite, Haynes 25, 188, X-40, L-605	< 36 HRC	1xD	36	118	.50xD	.25xD	0.0018(0.00007)	0.0036(0.00014)	0.0053(0.00021)	0.0071(0.00028)	0.0089(0.00035)	0.0107(0.00042)	0.003556
H	HARDENED STEEL	S7, H13	< 56 HRC	1xD	35	115	.25xD	.25xD	0.00203(0.00008)	0.00406(0.00016)	0.00609(0.00024)	0.00812(0.00032)	0.01015(0.00040)	0.01218(0.00048)	0.00406

3CVX // DYNAMIC ROUGHING

Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	Feed / Tooth mm (in) by cut diameter						Multiplication Factor
Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	0.5(0.0197)	1.0(0.0394)	1.5(0.0591)	2.0(0.0787)	2.5(0.0984)	3.0(0.1181)	Multiplication Factor
P	CARBON STEEL	10XX, 11XX, 12XX, 12LXX, A27, A36	< 38 HRC	.20xD	229	750	2.00xD	0.0076(0.00030)	0.0152(0.00060)	0.0229(0.00090)	0.0305(0.00120)	0.0381(0.00150)	0.0457(0.00180)	0.015240
	LOW ALLOY STEEL	13XX, 41XX, 43XX, 51XX, 86XX, 93XX	< 38 HRC	.20xD	229	750	2.00xD	0.0076(0.00030)	0.0152(0.00060)	0.0229(0.00090)	0.0305(0.00120)	0.0381(0.00150)	0.0457(0.00180)	0.015240
	HIGH ALLOY STEEL	300M, Invar 36, Kovar, Maraging	< 48 HRC	.20xD	183	600	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
M	AUSTENITIC STAINLESS STEEL	301, 303, 304, 304L, 316, 316L, 321, 347	< 38 HRC	.20xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	MARTENSITIC & FERRITIC STAINLESS	403, 410, 416, 420, 440, 430, 446	< 38 HRC	.20xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	PH STAINLESS	13-8, 15-5, 17-4, Carpenter 450	< 48 HRC	.20xD	137	450	2.00xD	0.0047(0.00019)	0.0094(0.00037)	0.0141(0.00055)	0.0188(0.00074)	0.0235(0.00092)	0.0282(0.00111)	0.009398
K	GRAY CAST IRON	SAE J431, ASTM A48	< 36 HRC	.25xD	168	550	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	MALLEABLE CAST IRON	ASTM A47, ASTM A220, ASTM A602
	NODULAR / DUCTILE	ASTM A536, ASTM 897
S	PURE NICKEL	Nickel 200, Nickel 201	< 98 HRB	.10xD	67	220	2.00xD	0.00305(0.00012)	0.00610(0.00024)	0.00914(0.00036)	0.01219(0.00048)	0.01524(0.00060)	0.01829(0.00072)	0.006096
	NICKEL ALLOY	Hastelloy C-22, Inconel, Waspaloy, René, Incoloy 20	< 48 HRC	.15xD	49	160	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
	TITANIUM ALLOY	6AL-4V, ASTM 1, 2, 3, 4, 7, 12, 36AL-2S	< 36 HRC	.20xD	88	290	2.00xD	0.0058(0.00023)	0.0117(0.00046)	0.0175(0.00069)	0.0234(0.00092)	0.0292(0.00115)	0.0351(0.00138)	0.011684
	COBALT ALLOY	Stellite, Haynes 25, 188, X-40, L-605	< 36 HRC	.10xD	55	180	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
H	HARDENED STEEL	S7, H13	< 56 HRC	.02xD	183	600	2.00xD	0.00789(0.00031)	0.01578(0.00062)	0.02367(0.00093)	0.03156(0.00124)	0.03946(0.00155)	0.04735(0.00186)	0.01578

3CVX // FINISHING

Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	Feed / Tooth mm (in) by cut diameter						Multiplication Factor
Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	0.5(0.0197)	1.0(0.0394)	1.5(0.0591)	2.0(0.0787)	2.5(0.0984)	3.0(0.1181)	Multiplication Factor
P	CARBON STEEL	10XX, 11XX, 12XX, 12LXX, A27, A36	< 38 HRC	.01xD	229	750	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	LOW ALLOY STEEL	13XX, 41XX, 43XX, 51XX, 86XX, 93XX	< 38 HRC	.01xD	229	750	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	HIGH ALLOY STEEL	300M, Invar 36, Kovar, Maraging	< 48 HRC	.01xD	183	600	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
M	AUSTENITIC STAINLESS STEEL	301, 303, 304, 304L, 316, 316L, 321, 347	< 38 HRC	.01xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	MARTENSITIC & FERRITIC STAINLESS	403, 410, 416, 420, 440, 430, 446	< 38 HRC	.01xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	PH STAINLESS	13-8, 15-5, 17-4, Carpenter 450	< 48 HRC	.01xD	137	450	2.00xD	0.0047(0.00019)	0.0094(0.00037)	0.0141(0.00055)	0.0188(0.00074)	0.0235(0.00092)	0.0282(0.00111)	0.009398
K	GRAY CAST IRON	SAE J431, ASTM A48	< 36 HRC	.01xD	168	550	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	MALLEABLE CAST IRON	ASTM A47, ASTM A220, ASTM A602
	NODULAR / DUCTILE	ASTM A536, ASTM 897
S	PURE NICKEL	Nickel 200, Nickel 201	< 98 HRB	.01xD	67	220	2.00xD	0.00305(0.00012)	0.00610(0.00024)	0.00914(0.00036)	0.01219(0.00048)	0.01524(0.00060)	0.01829(0.00072)	0.006096
	NICKEL ALLOY	Hastelloy C-22, Inconel, Waspaloy, René, Incoloy 20	< 48 HRC	.01xD	49	160	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
	TITANIUM ALLOY	6AL-4V, ASTM 1, 2, 3, 4, 7, 12, 36AL-2S	< 36 HRC	.01xD	88	290	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	COBALT ALLOY	Stellite, Haynes 25, 188, X-40, L-605	< 36 HRC	.01xD	55	180	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
H	HARDENED STEEL	S7, H13	< 56 HRC	.01xD	183	600	2.00xD	0.00508(0.00020)	0.01016(0.00040)	0.01524(0.00060)	0.02032(0.00080)	0.02540(0.00100)	0.03048(0.00120)	0.01016
