5-Flute, Coolant-Through, Variable Index, Universal X‑Coated

5CVX

High‑Performance, Coolant‑Through Design for Dynamic Milling & High‑Speed Finishing Steel, Stainless & High‑Temp Alloys

Up to 20% step-over and high speed finishing with the X-coated 5CVX

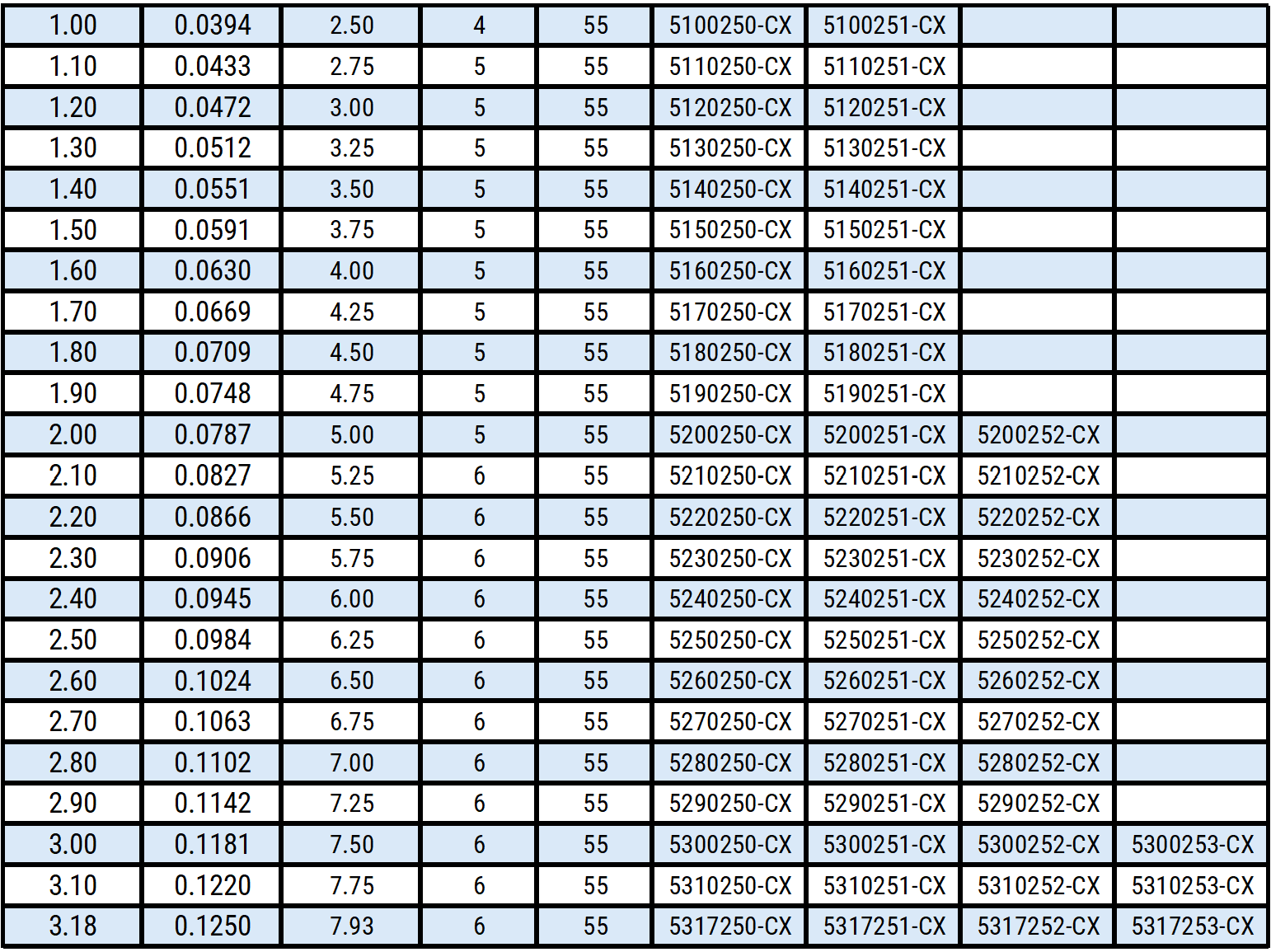

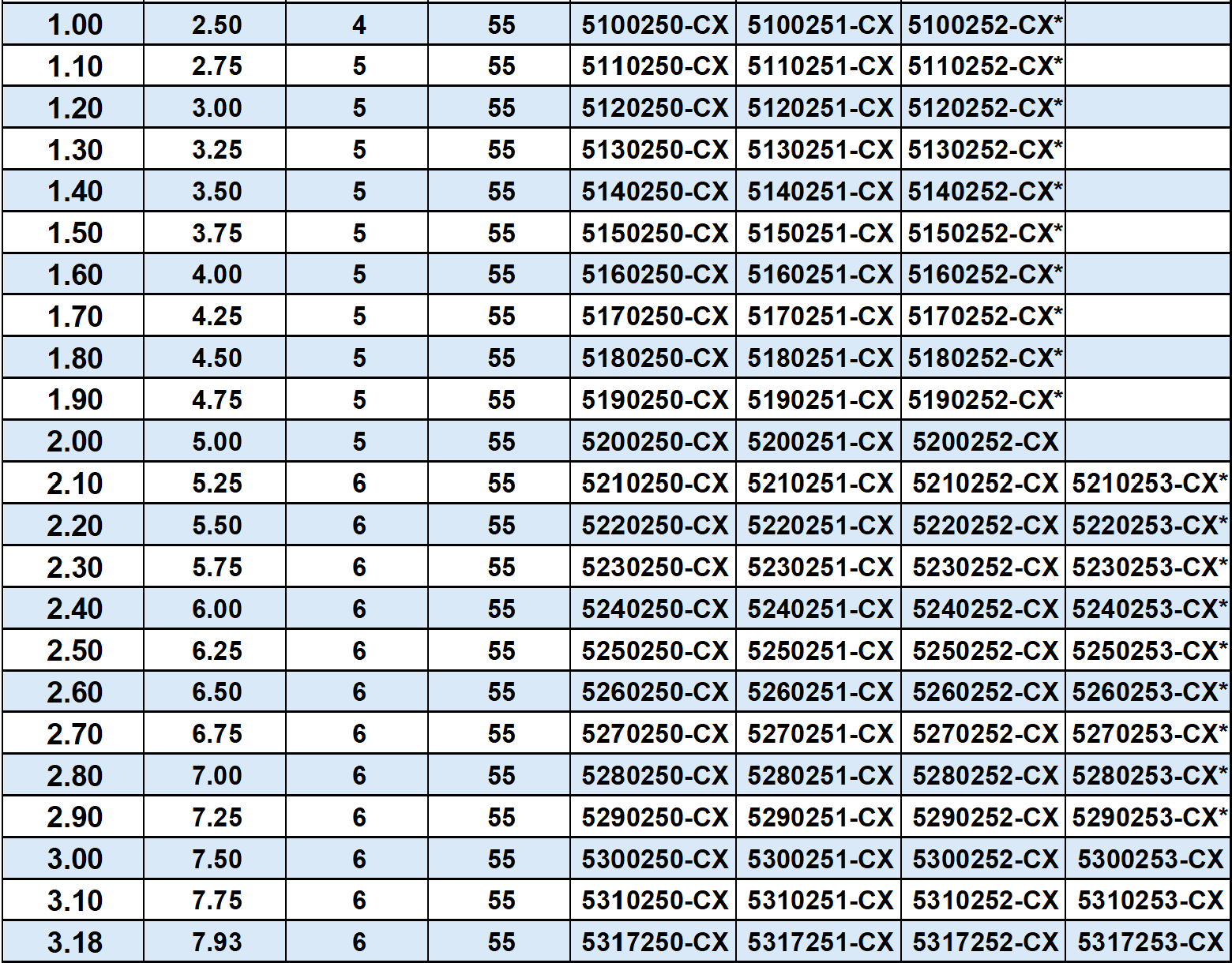

Cut Diameter		Cut Length 2.5×D	Shank Diameter	Overall Length	Square	Radius 0.1 / .005"	Radius 0.2 / .010"	Radius 0.3 / .015"
mm	in	Cut Length 2.5×D	Shank Diameter	Overall Length	Coolant Through – Universal X Coated
1.50	0.0591	3.75	5	55	5150250-CX	5150251-CX	–	–
1.59*	0.0625	4.00	5	55	5159250-CX	51592513-CX	–	–
1.98*	0.0781	4.95	5	55	5198250-CX	–	–	–
2.00	0.0787	5.00	5	55	5200250-CX	5200251-CX	5200252-CX	–
2.38*	0.0938	5.95	6	55	5238250-CX	–	–	–
2.50	0.0984	6.25	6	55	5250250-CX	5250251-CX	5250252-CX	–
2.78*	0.1094	6.95	6	55	5278250-CX	–	–	–
3.00	0.1181	7.50	6	55	5300250-CX	–	–	–
3.17*	0.1250	7.93	6	55	5317250-CX	53172513-CX	53172525-CX	53172538-CX

P	●
M	●
K	●
N	○
S	●
H	●

* Inch sizes (1/16, 5/64, 3/32, 7/64 and 1/8 in) use inch corner radii: .005" (0.13 mm), .010" (0.25 mm) and .015" (0.38 mm).

Other sizes and corner radii are available made to order. Allow 14–20 business days.

Key Features

Coolant-through shank: delivers coolant to the cutting edge, reducing heat and improving chip evacuation.
Universal Extreme Coating: minimizes built-up edge, providing exceptional tool life and wear resistance in stainless steel and high-temp alloys.
New flute geometry: allows increased feed rates and reduced cycle times.
5-flute design: optimized for increased feeds and step-over in roughing and finishing applications.
Premium carbide: for rigidity and long tool life.

Applications & Benefits

Applications

Dynamic milling with up to 20% step-over, and high-speed finishing.

Ideal Materials

Carbon, alloy and hardened steels (up to 56 HRC), stainless steels, cast iron, titanium, and nickel and cobalt alloys such as Inconel.

Performance Benefits

Long tool life and wear resistance in difficult materials
Reduced built-up edge
Higher feed rates and shorter cycle times

Speeds & Feeds

Recommended starting parameters. Feed per tooth is shown in mm, with inches in parentheses.

For other diameters: Feed / Tooth (mm) = Cut Diameter (mm) × Multiplication Factor

5CVX // DYNAMIC ROUGHING

Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	Feed / Tooth mm (in) by cut diameter						Multiplication Factor
Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	0.5(0.0197)	1.0(0.0394)	1.5(0.0591)	2.0(0.0787)	2.5(0.0984)	3.0(0.1181)	Multiplication Factor
P	CARBON STEEL	10XX, 11XX, 12XX, 12LXX, A27, A36	< 38 HRC	.20xD	229	750	2.00xD	0.0032(0.00012)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	LOW ALLOY STEEL	13XX, 41XX, 43XX, 51XX, 86XX, 93XX	< 38 HRC	.20xD	229	750	2.00xD	0.0032(0.00012)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	HIGH ALLOY STEEL	300M, Invar 36, Kovar, Maraging	< 48 HRC	.20xD	183	600	2.00xD	0.0032(0.00012)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
M	AUSTENITIC STAINLESS STEEL	301, 303, 304, 304L, 316, 316L, 321, 347	< 38 HRC	.20xD	183	600	2.00xD	0.0032(0.00013)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	MARTENSITIC & FERRITIC STAINLESS	403, 410, 416, 420, 440, 430, 446	< 38 HRC	.20xD	183	600	2.00xD	0.0032(0.00013)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	PH STAINLESS	13-8, 15-5, 17-4, Carpenter 450	< 48 HRC	.20xD	137	450	2.00xD	0.0032(0.00013)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
K	GRAY CAST IRON	SAE J431, ASTM A48	< 36 HRC	.25xD	168	550	2.00xD	0.0032(0.00013)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	MALLEABLE CAST IRON	ASTM A47, ASTM A220, ASTM A602
	NODULAR / DUCTILE	ASTM A536, ASTM 897
S	PURE NICKEL	Nickel 200, Nickel 201	< 98 HRB	.10xD	67	220	2.00xD	0.00263(0.00010)	0.00525(0.00021)	0.00788(0.00031)	0.01050(0.00041)	0.01313(0.00052)	0.01575(0.00062)	0.005250
	NICKEL ALLOY	Hastelloy C-22, Inconel, Waspaloy, René, Incoloy 20	< 48 HRC	.15xD	49	160	2.00xD	0.0026(0.00010)	0.0053(0.00021)	0.0079(0.00031)	0.0105(0.00041)	0.0131(0.00052)	0.0158(0.00062)	0.005250
	TITANIUM ALLOY	6AL-4V, ASTM 1, 2, 3, 4, 7, 12, 36AL-2S	< 36 HRC	.20xD	88	290	2.00xD	0.0032(0.00013)	0.0064(0.00025)	0.0095(0.00037)	0.0127(0.00050)	0.0159(0.00062)	0.0191(0.00075)	0.006350
	COBALT ALLOY	Stellite, Haynes 25, 188, X-40, L-605	< 36 HRC	.10xD	55	180	2.00xD	0.0026(0.00010)	0.0053(0.00021)	0.0079(0.00031)	0.0105(0.00041)	0.0131(0.00052)	0.0158(0.00062)	0.005250
H	HARDENED STEEL	S7, H13	< 56 HRC	.02xD	183	600	2.00xD	0.00789(0.00031)	0.01578(0.00062)	0.02367(0.00093)	0.03156(0.00124)	0.03946(0.00155)	0.04735(0.00186)	0.01578

5CVX // FINISHING

Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	Feed / Tooth mm (in) by cut diameter						Multiplication Factor
Material Guide			Hardness	WOC MAX	M/Min	SFM	DOC 2.5xD LOC	0.5(0.0197)	1.0(0.0394)	1.5(0.0591)	2.0(0.0787)	2.5(0.0984)	3.0(0.1181)	Multiplication Factor
P	CARBON STEEL	10XX, 11XX, 12XX, 12LXX, A27, A36	< 38 HRC	.01xD	229	750	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	LOW ALLOY STEEL	13XX, 41XX, 43XX, 51XX, 86XX, 93XX	< 38 HRC	.01xD	229	750	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	HIGH ALLOY STEEL	300M, Invar 36, Kovar, Maraging	< 48 HRC	.01xD	183	600	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
M	AUSTENITIC STAINLESS STEEL	301, 303, 304, 304L, 316, 316L, 321, 347	< 38 HRC	.01xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	MARTENSITIC & FERRITIC STAINLESS	403, 410, 416, 420, 440, 430, 446	< 38 HRC	.01xD	183	600	2.00xD	0.0057(0.00023)	0.0114(0.00045)	0.0171(0.00067)	0.0229(0.00090)	0.0286(0.00112)	0.0343(0.00135)	0.011430
	PH STAINLESS	13-8, 15-5, 17-4, Carpenter 450	< 48 HRC	.01xD	137	450	2.00xD	0.0047(0.00019)	0.0094(0.00037)	0.0141(0.00055)	0.0188(0.00074)	0.0235(0.00092)	0.0282(0.00111)	0.009398
K	GRAY CAST IRON	SAE J431, ASTM A48	< 36 HRC	.01xD	168	550	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	MALLEABLE CAST IRON	ASTM A47, ASTM A220, ASTM A602
	NODULAR / DUCTILE	ASTM A536, ASTM 897
S	PURE NICKEL	Nickel 200, Nickel 201	< 98 HRB	.01xD	67	220	2.00xD	0.00305(0.00012)	0.00610(0.00024)	0.00914(0.00036)	0.01219(0.00048)	0.01524(0.00060)	0.01829(0.00072)	0.006096
	NICKEL ALLOY	Hastelloy C-22, Inconel, Waspaloy, René, Incoloy 20	< 48 HRC	.01xD	49	160	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
	TITANIUM ALLOY	6AL-4V, ASTM 1, 2, 3, 4, 7, 12, 36AL-2S	< 36 HRC	.01xD	88	290	2.00xD	0.0051(0.00020)	0.0102(0.00040)	0.0152(0.00060)	0.0203(0.00080)	0.0254(0.00100)	0.0305(0.00120)	0.010160
	COBALT ALLOY	Stellite, Haynes 25, 188, X-40, L-605	< 36 HRC	.01xD	55	180	2.00xD	0.0030(0.00012)	0.0061(0.00024)	0.0091(0.00036)	0.0122(0.00048)	0.0152(0.00060)	0.0183(0.00072)	0.006096
H	HARDENED STEEL	S7, H13	< 56 HRC	.01xD	183	600	2.00xD	0.00508(0.00020)	0.01016(0.00040)	0.01524(0.00060)	0.02032(0.00080)	0.02540(0.00100)	0.03048(0.00120)	0.01016
