5-Flute, Coolant-Through, Variable Index, Un-Coated
5CV
High‑Performance, Coolant‑Through Design for Dynamic Milling & High‑Speed Finishing Aluminum, Brass & Plastics

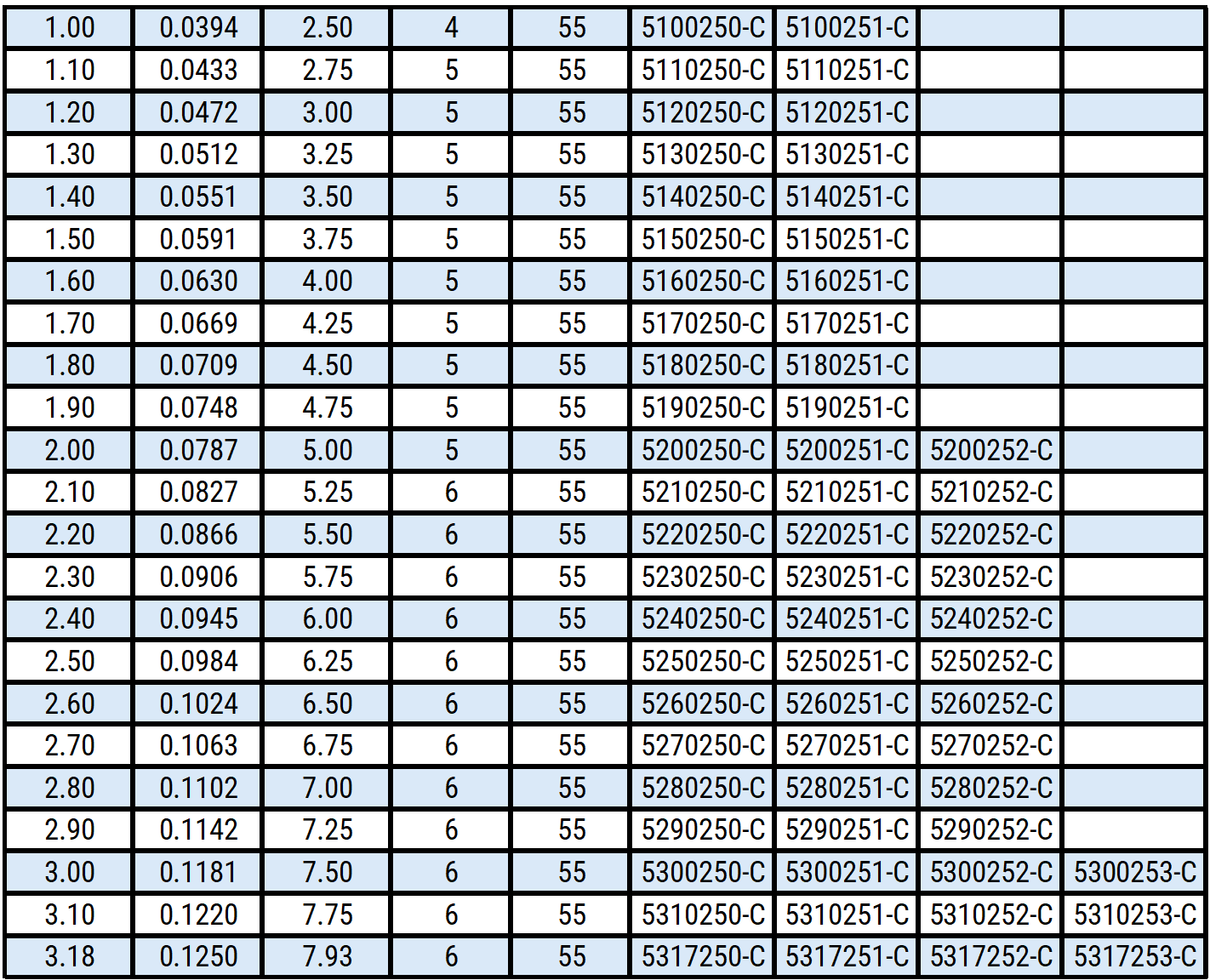

| Cut Diameter | Cut Length 2.5×D | Shank Diameter | Overall Length | Square | Radius 0.1 / .005" | Radius 0.2 / .010" | Radius 0.3 / .015" | |
|---|---|---|---|---|---|---|---|---|
| mm | in | Coolant Through – Un-Coated | ||||||
| 1.50 | 0.0591 | 3.75 | 5 | 55 | 5150250-C | 5150251-C | – | – |
| 1.59* | 0.0625 | 4.00 | 5 | 55 | 5159250-C | 51592513-C | – | – |
| 1.98* | 0.0781 | 4.95 | 5 | 55 | 5198250-C | – | – | – |
| 2.00 | 0.0787 | 5.00 | 5 | 55 | 5200250-C | 5200251-C | 5200252-C | – |
| 2.38* | 0.0938 | 5.95 | 6 | 55 | 5238250-C | – | – | – |
| 2.50 | 0.0984 | 6.25 | 6 | 55 | 5250250-C | 5250251-C | 5250252-C | – |
| 2.78* | 0.1094 | 6.95 | 6 | 55 | 5278250-C | – | – | – |
| 3.00 | 0.1181 | 7.50 | 6 | 55 | 5300250-C | – | – | – |
| 3.17* | 0.1250 | 7.93 | 6 | 55 | 5317250-C | 53172513-C | 53172525-C | 53172538-C |
| P | ○ |
|---|---|
| M | ○ |
| K | ○ |
| N | ● |
| S | ○ |
| H | ○ |
* Inch sizes (1/16, 5/64, 3/32, 7/64 and 1/8 in) use inch corner radii: .005" (0.13 mm), .010" (0.25 mm) and .015" (0.38 mm).
Other sizes and corner radii are available made to order. Allow 14–20 business days.
Key Features
- Coolant-through shank: delivers coolant to the cutting edge, reducing heat and improving chip evacuation.
- High-polish flutes: minimize material bonding, providing exceptional chip evacuation in aluminum, brass and plastic.
- New flute geometry: allows increased feed rates and reduced cycle times.
- 5-flute design: optimized for increased feeds and step-over in roughing and finishing applications.
- Premium carbide: for rigidity and long tool life.
Applications & Benefits
Applications
Dynamic milling with up to 20% step-over, and high-speed finishing.
Ideal Materials
Aluminum alloys, brass, copper, plastics and other non-ferrous materials.
Performance Benefits
- Excellent chip evacuation
- Superior surface finish
- Higher feed rates and shorter cycle times
Speeds & Feeds
Recommended starting parameters. Feed per tooth is shown in mm, with inches in parentheses.
For other diameters: Feed / Tooth (mm) = Cut Diameter (mm) × Multiplication Factor
5CV // DYNAMIC ROUGHING
| Material Guide | Hardness | WOC MAX | M/Min | SFM | DOC 2.5xD LOC | Feed / Tooth mm (in) by cut diameter | Multiplication Factor | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5(0.0197) | 1.0(0.0394) | 1.5(0.0591) | 2.0(0.0787) | 2.5(0.0984) | 3.0(0.1181) | |||||||||
| N | ALUMINUM ALLOYS | 6061, 7075, A380 | < 15 HRC | .30xD | 244 | 800 | 2.00xD | 0.00438(0.00017) | 0.00875(0.00034) | 0.01313(0.00052) | 0.01750(0.00069) | 0.02188(0.00086) | 0.02625(0.00103) | 0.008750 |
| COPPER ALLOYS | C10100, C28000 | |||||||||||||
5CV // FINISHING
| Material Guide | Hardness | WOC MAX | M/Min | SFM | DOC 2.5xD LOC | Feed / Tooth mm (in) by cut diameter | Multiplication Factor | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0.5(0.0197) | 1.0(0.0394) | 1.5(0.0591) | 2.0(0.0787) | 2.5(0.0984) | 3.0(0.1181) | |||||||||
| N | ALUMINUM ALLOYS | 6061, 7075, A380 | < 15 HRC | .01xD | 244 | 800 | 2.00xD | 0.00508(0.00020) | 0.01016(0.00040) | 0.01524(0.00060) | 0.02032(0.00080) | 0.02540(0.00100) | 0.03048(0.00120) | 0.010160 |
| COPPER ALLOYS | C10100, C28000 | |||||||||||||
